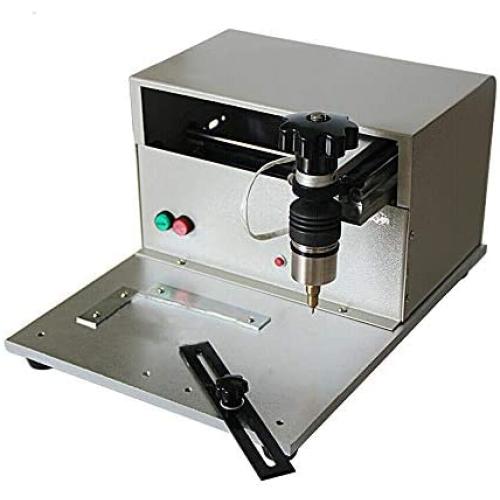

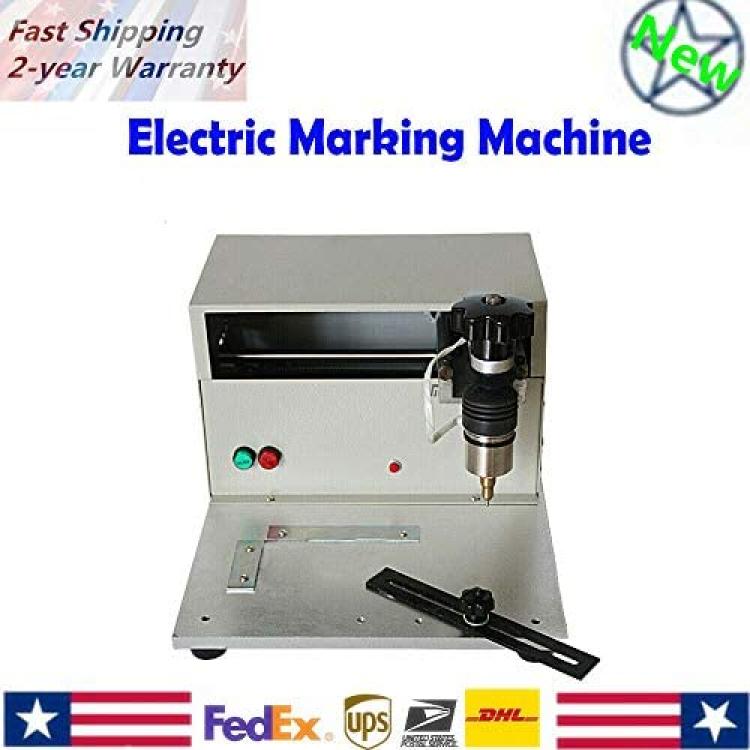

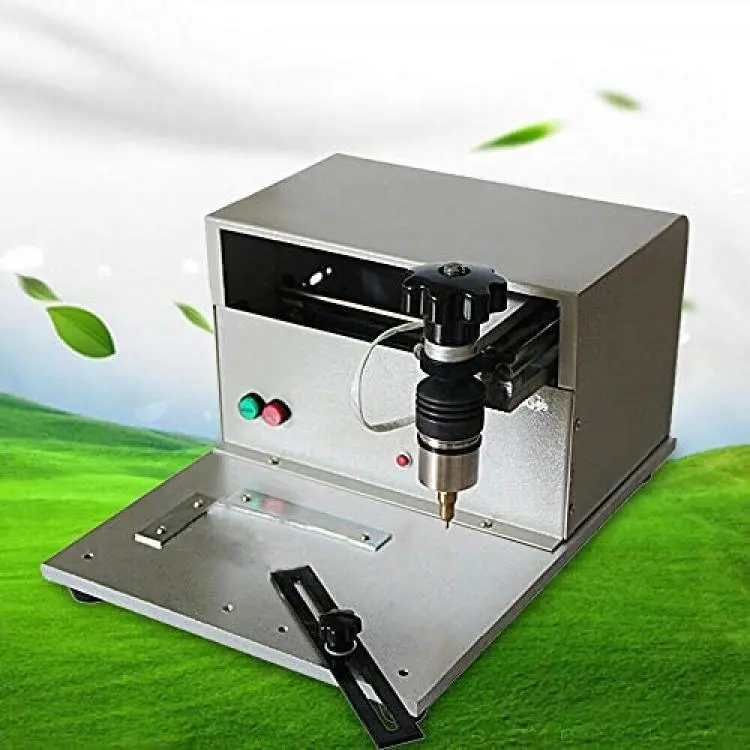

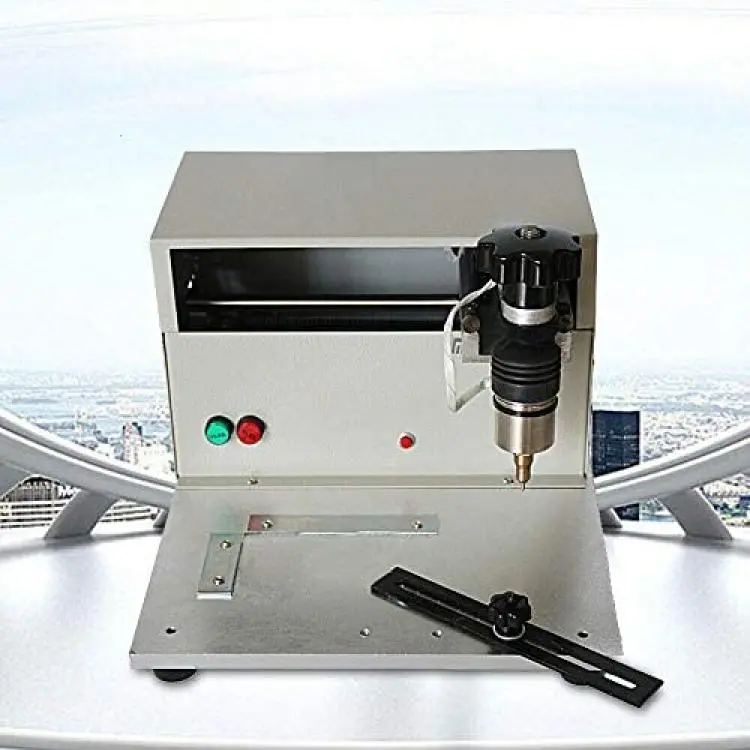

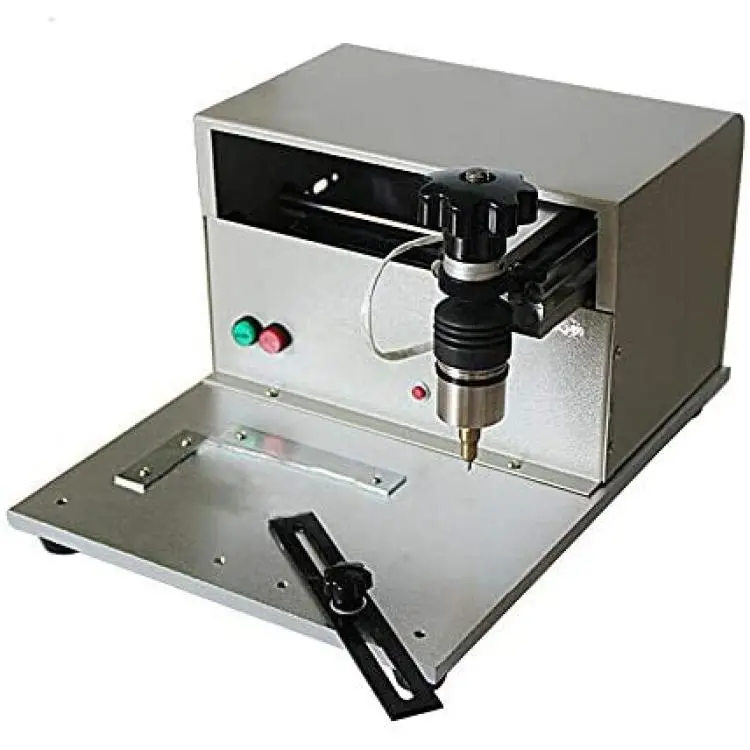

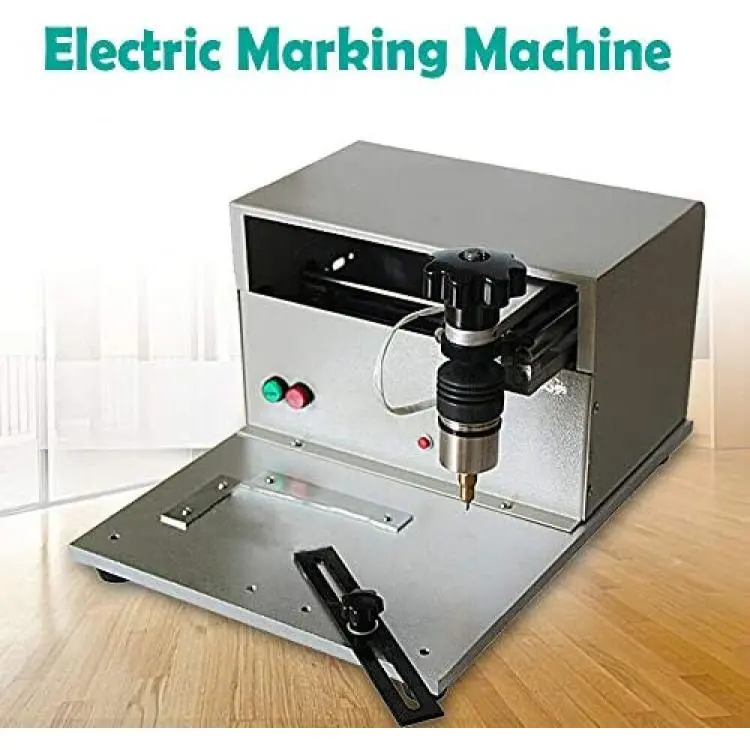

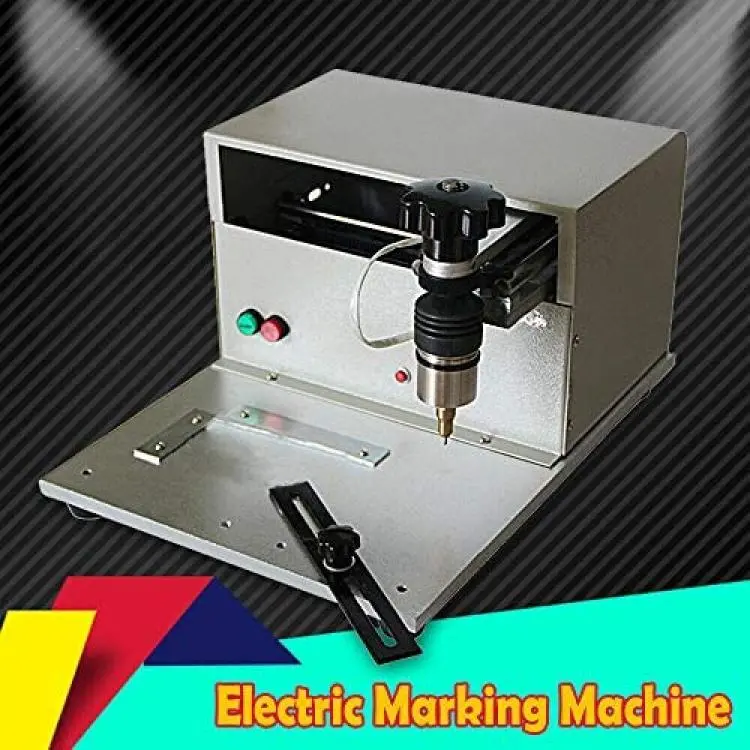

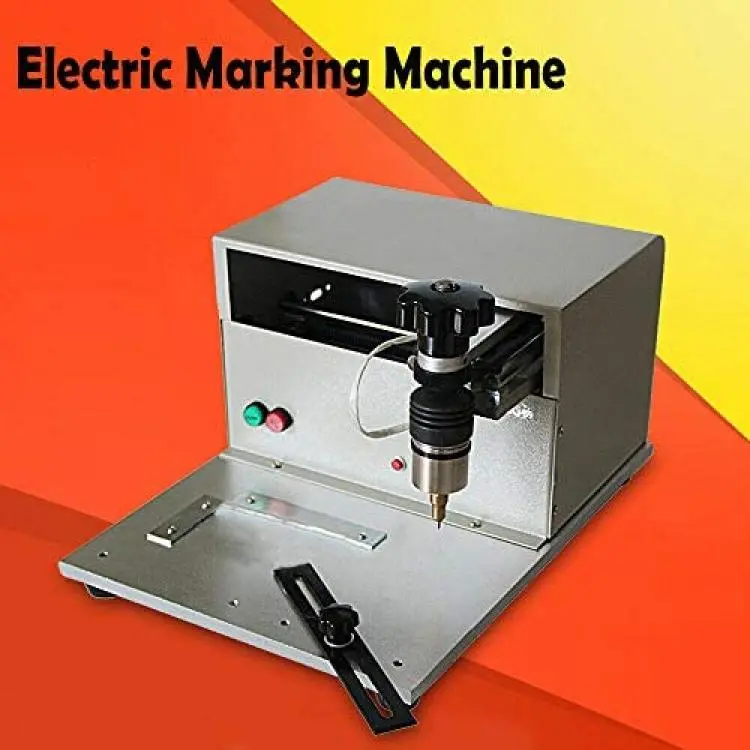

LOYALHEARTDY Electric Nameplate Metal Plate Marking Machine Stamping Embosser Embossing Engraving Machine Marking System 30-200mm / sec

Features:

Operating system: windows 98, Me, 2000, Windows XP, WIN7 (connected via USB computer).

Software System: Industrial Marking System (including: Industrial Printing System, Graphics Editor, Graphics Converter, Font Editor, Marking Database Management System)

Print content: various characters, serial number, VIN code and graphic security mark
Support barcode: external barcode printer, print barcode
Printing range: 170 × 110 mm
Rotary upgrade: external rotary fixture for circular marking
Repeated printing accuracy: 0.08 mm
Marking speed: 30-200mm / sec
Marking time: can continuously working for 16 hour
Printing depth: 0.01 ~ 1.5mm adjustable (depending on the material)
Workpiece hardness: Print speed: up to 2 characters per second (2mm high letters or numbers)
Printing direction: optional upper, lower, left, right, and tube arc surface, fan shape
Applicable workpiece: various materials, shapes, sizes
Input method: manual, automatic serial number increment (can be set incremental)
Voltage: 110V-220V / 50Hz-60Hz ±10%
Power: about 200w
Air source pressure: >=0.6 Mpa (actual use 0.2 ~ 0.4 Mpa)
Working temperature: 5~45 degrees
Impact frequency: >200 Hz


Note:

A. All power must be turned off before disassembling any cables or components of the unit, otherwise the machine will be damaged.

B. Do not play empty, and the needle will fall off easily when it is empty.

C. The printer is a precision numerical control device. Any operation that does not follow the operating instructions may damage the machine. The operator must read this manual before working on the machine.

D. The electromagnetic marking head generates high temperature when working, please do not touch it directly with your hand.
