PC Water Cooling Kit DIY Water Cooling Kit with Cooler CPU/GPU Block Cylindrical Water Reservoir Pump LED Fan 240mm Heat Sink Connectors Kit All-in-one Liquid Computer Water Cooling Set
About this product
*【Professional Liquid CPU Cooler Kit】Provides a 240mm heat sink, Water Pump with Shock Pad, Cylindrical Water Reservoir, Dual Fans, CPU / GPU Blocks,Transparent Hose, well as installation accessories.
*【Good Heat Dissipation 】The cooler kit will dramatically improve heat dissipation experience, especially in terms of stability, silence, efficiency, and convenience.And liquid cooling simply works better than air cooling and the special design makes it easy for you to protect your valuable CPU.
*【Universal Cooler Block】The CPU/GPU block is constructed with a copper base to provide exceptional heat transfer and cooling performance. The CPU block is universal for INTEL / AMD Dual Platform (For INTEL 775,1150,1155,1156,1366,) (For AMD: AM2, AM3, AM3 +)
*【Good Water Cooling Circulation System】The cylindrical water reservoir is manufactured from high quality transparent acrylic so that the circulation system is visible.The high-stability water pump has the characteristics of waterproof, quiet and long-lasting. And the extreme performance dual fans offer a high air static pressure with lower noise.
*【Easy to Install】 The kit contains all the accessories you need to customize the water cooling settings to match the equipment of your system.Its easy to install and suitable for your own cooling
Description
Specifications:

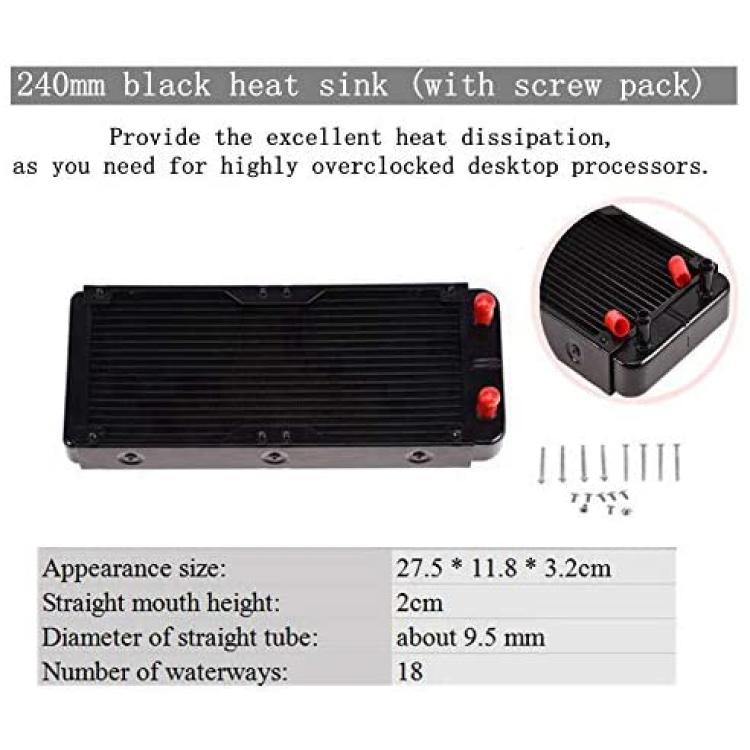

1. 240mm black heat sink (with screw pack):
Appearance size: 27.5 * 11.8 * 3.2cm
Straight mouth height: 2cm
Diameter of straight tube: about 9.5 mm
Number of waterways: 18

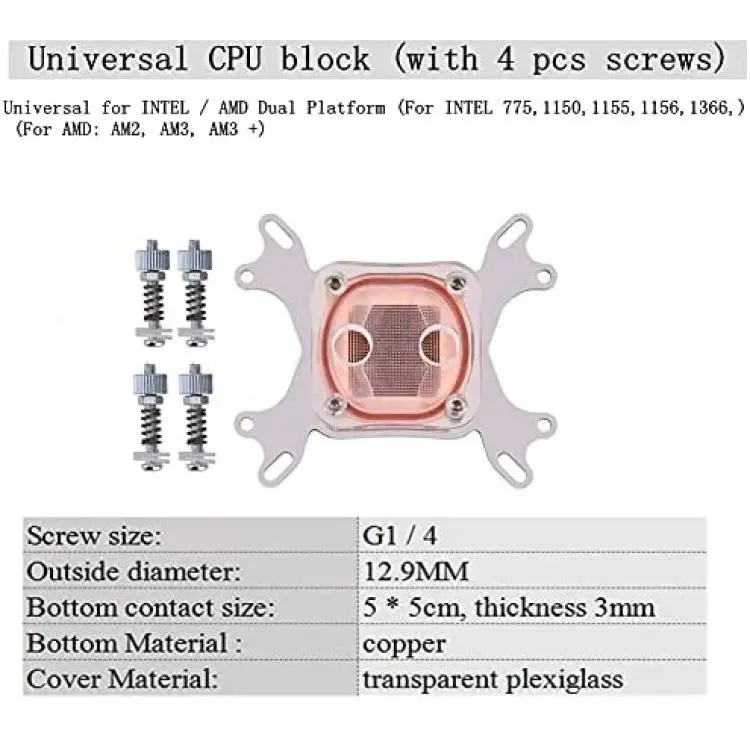

2. Universal CPU block (with 4 pcs screws):
Screw size: G1 / 4
Outside diameter: 12.9MM
Bottom contact size: 5 * 5cm, thickness 3mm
Material: Bottom: copper; Cover: transparent plexiglass

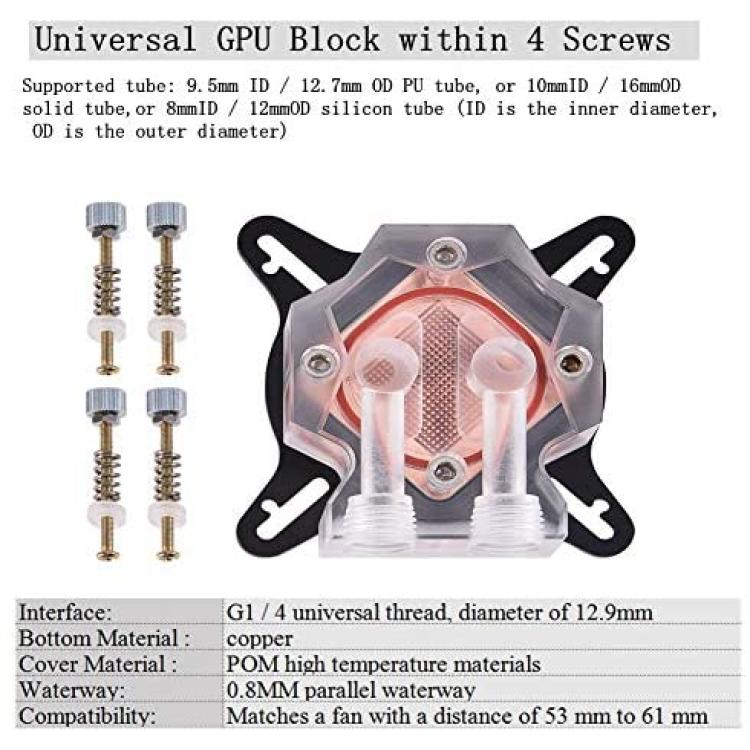

3. Universal GPU block
Interface: G1 / 4 universal thread, diameter of 12.9mm
Material: Bottom: copper; Cover: POM high temperature materials
Waterway: 0.8MM parallel waterway
Compatibility: Matches a fan with a distance of 53 mm to 61 mm
Supported tube: 9.5mm ID / 12.7mm OD PU tube, or 10mmID / 16mmOD solid tube, or 8mmID / 12mmOD silicon tube (ID is the inner diameter, OD is the outer diameter)

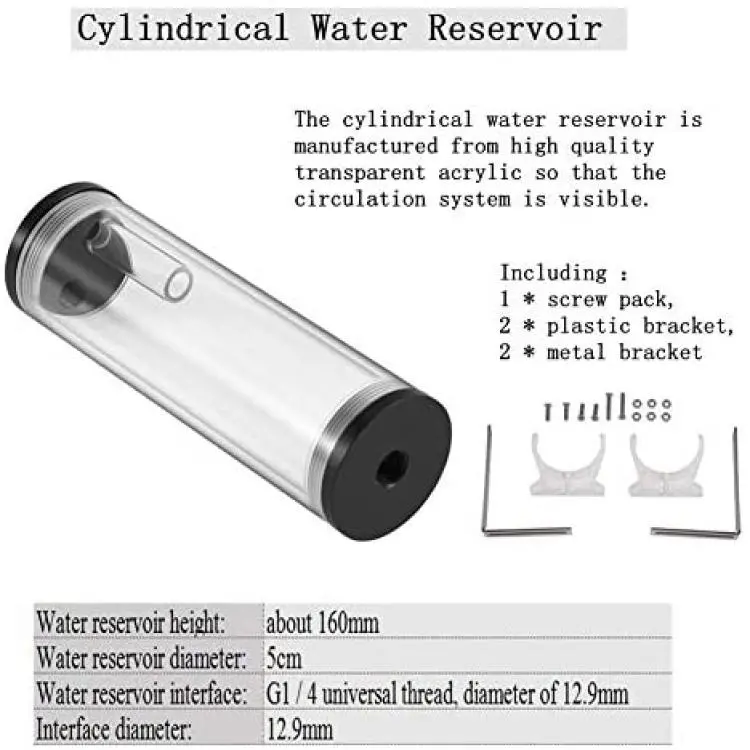

4. Cylindrical Water Reservoir (including plastic bracket * 2, metal bracket * 2, screw pack * 1):
Water reservoir height: about 160mm
Water reservoir diameter: 5cm
Water reservoir interface: G1 / 4 universal thread
Interface diameter: 12.9mm

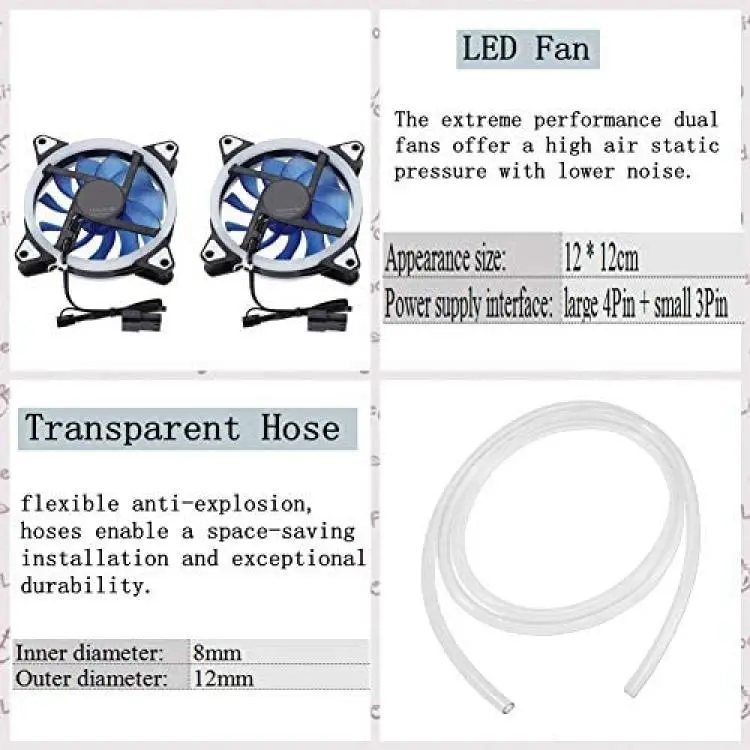

5. Transparent hose:
Inner diameter: 8mm
Outer diameter: 12mm

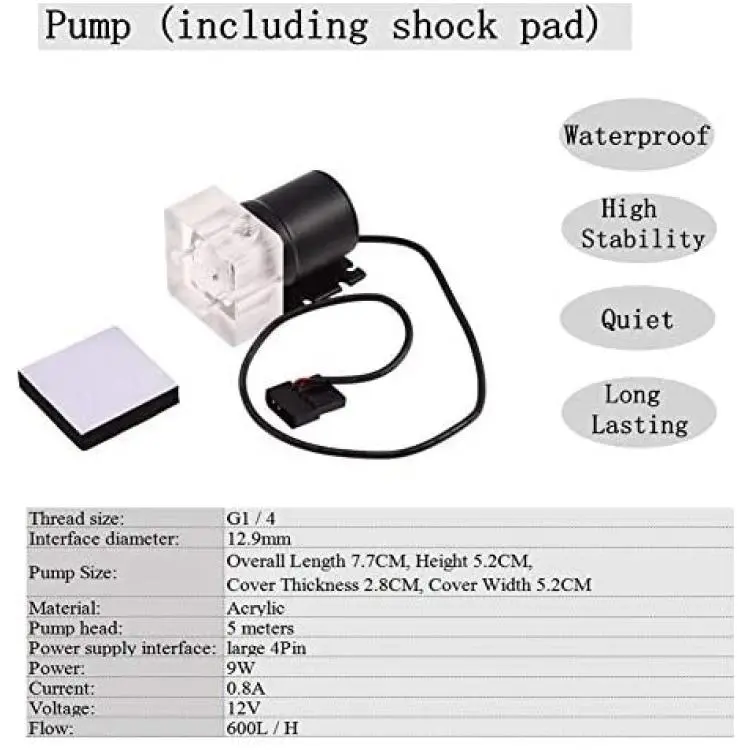

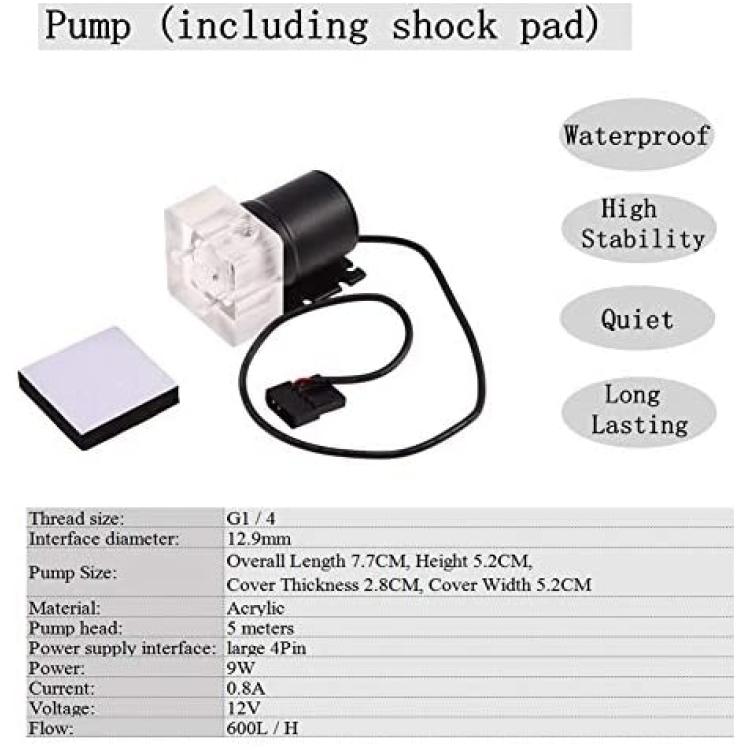

6. Pump (including shock pad):
Features: Waterproof, high stability, quiet, long lasting.
Thread size: G1 / 4
Interface diameter: 12.9mm
Pump Size: Overall Length 7.7CM, Height 5.2CM, Cover Thickness 2.8CM, Cover Width 5.2CM
Material: Acrylic
Pump head: 5 meters
Power supply interface: large 4Pin
Power: 9W
Current: 0.8A
Voltage: 12V
Flow: 600L / H

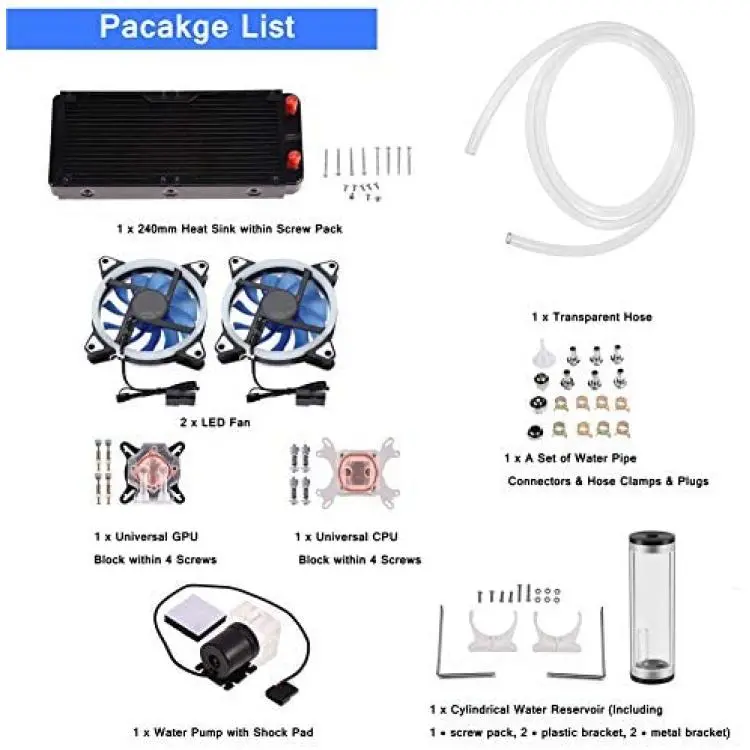

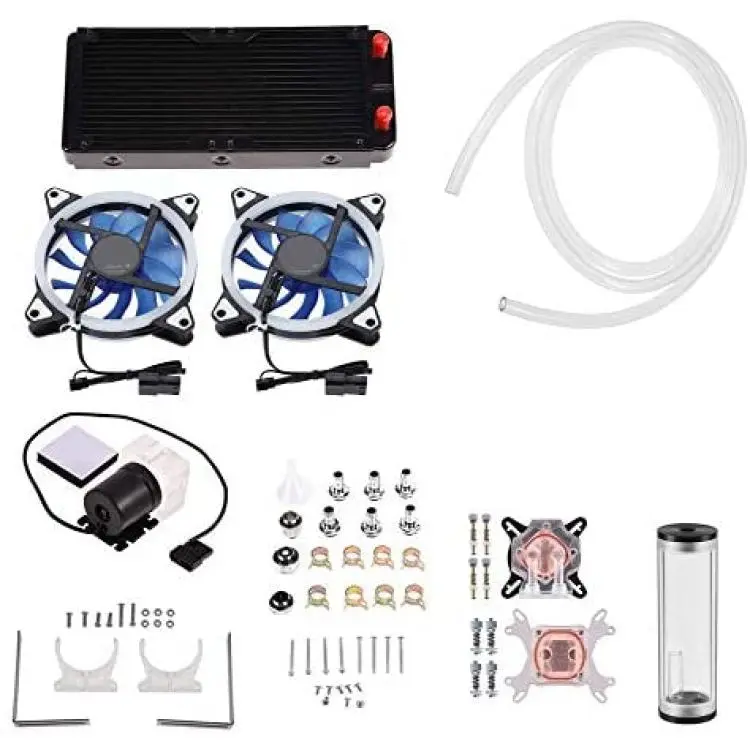

Pacakage List:
1 x 240mm Heat Sink within Screw Pack
2 x LED Fan
1 x Universal CPU Block within 4 Screws
1 x Universal GPU Block within 4 Screws
1 x C?(Including 1 * screw pack, 2 * plastic bracket, 2 * metal bracket)
1 x Transparent Hose
1 x Water Pump with Shock Pad
1 x A Set of Water Pipe Connectors & Hose Clamps & Plugs
