CHENJUAN DS1109MG 120° 4.8V-6.0V 10g 2BB DC Motor Metal Gear Digital Servo for 450 RC Helicopter RC Airplane Spare Part Spare Parts
About this product
*Weight: 10g
*Gear: Metal Gear
*Application: For 450 RC Helicopter, RC Airplane, etc.
*Weight: 10g
*Gear: Metal Gear
Description
Description:

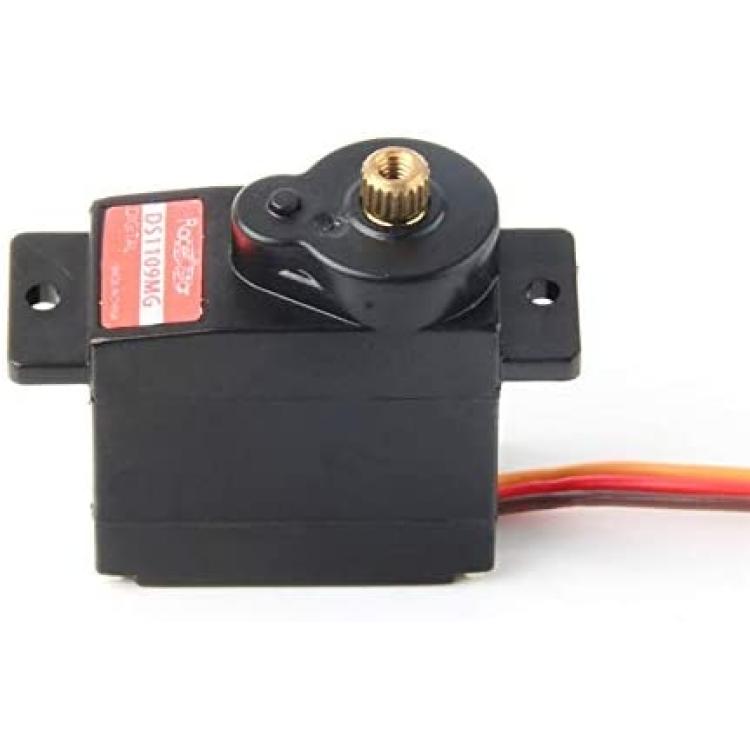

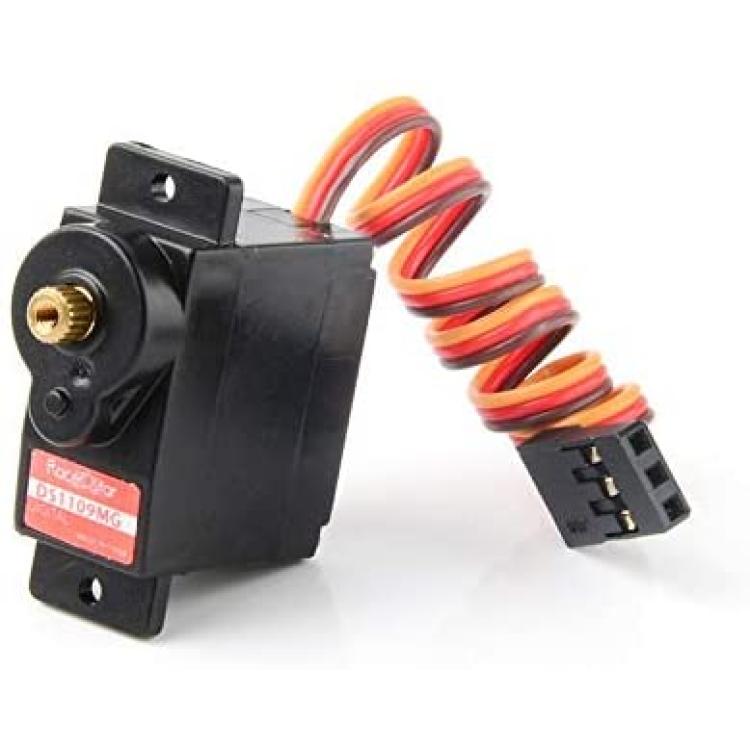

Product: DS1109MG Digital Servo
Operating Voltage: 4.8V-6.0V
Operating Speed (4.8V): 0.12sec/60°
Operating Speed (6.0V): 0.10 sec/60°
Stall Torque (4.8V): 2.2kg.cm (30.8oz/in)
Stall Torque (6.0V): 2.5kg.cm (35.0oz/in)
Dead Band: 2?s
Working Frequence: 1520?s / 330hz
Rotation: 120°
Gear: Metal Gear
Motor: DC Motor
Bearing: 2BB
Dimensions: 23.2x12.0x25.5mm
Connector Wire Length: JR180 mm(10.43in)
Operating Temperature Scope: -20 to + 60°C
Weight: 10g
Application: For 450 RC Helicopter, RC Airplane, etc.

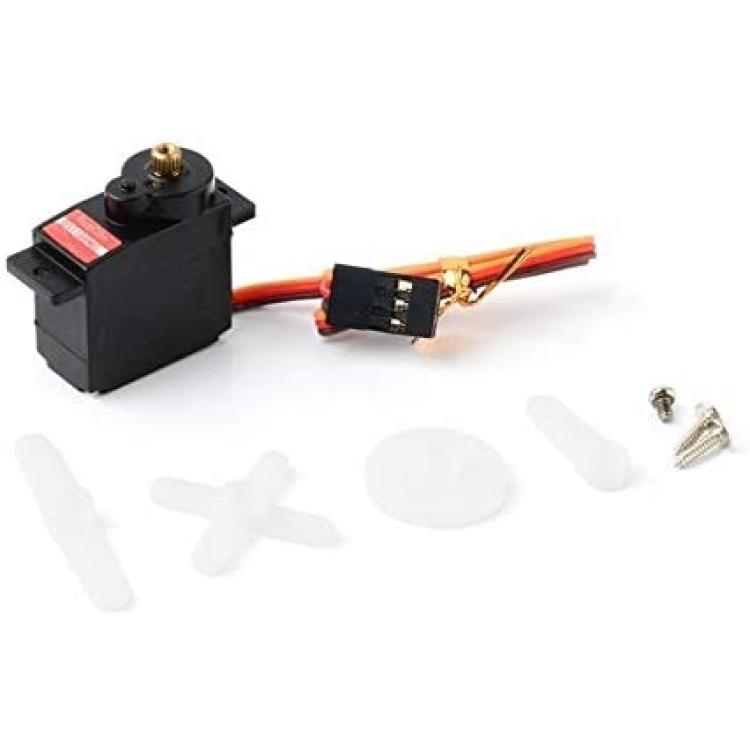

Package Included:
1 * Racerstar DS1109MG Digital Servo
1 * Servo Arm Set
Warranty service: If you have quality problems, please contact us first, provide a lifetime warranty and replacement service
