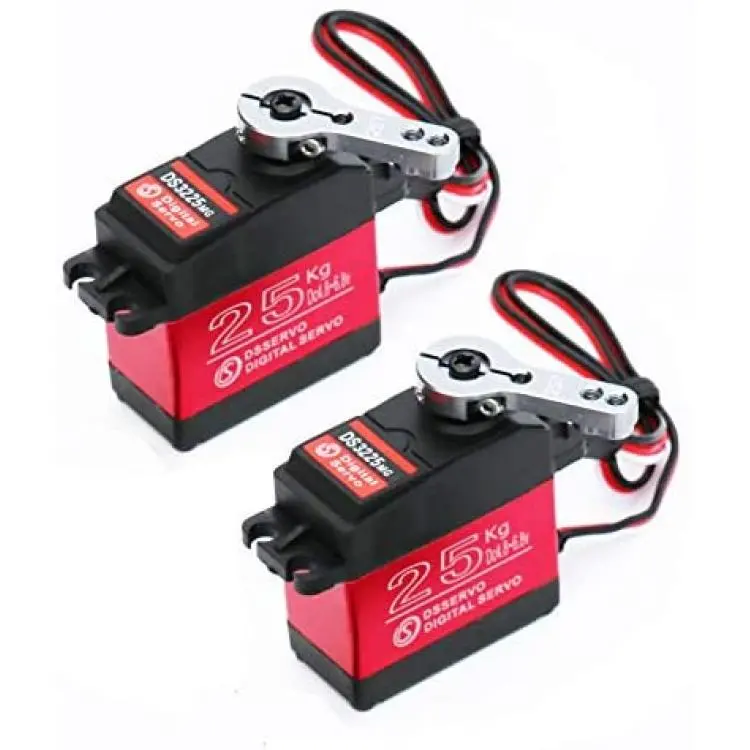

Youleke 2Pack 25KG High Torque RC Digital Servo，Waterproof Full Metal Gear Servo with 25T Servo Horn（270°）
About this product
*2Pack 25KG High Torque RC Digital Servo，Compatible with1/8, 1/10, 1/12 Scale Clawer Truck, Traxxas, scx10, RC Car / Robot / Boat.
*Servo Equipped with strong Aluminum gear, iron core motor, CNC aluminum middle shell.
*Dimensions:1.57 x 0.78 x 1.59 inch(40 x 20 x 40.5 mm); Weight:2.64oz (75g).
*Less Noise, light weight., mechanical arm, Quadcopter Drone and other remote control equipment.
*Great choice for people who are interested in developing software for robot parts.
Description
Specification:
25KG High Torque RC Digital Servo are ideal for cars, airplanes ,and robots.

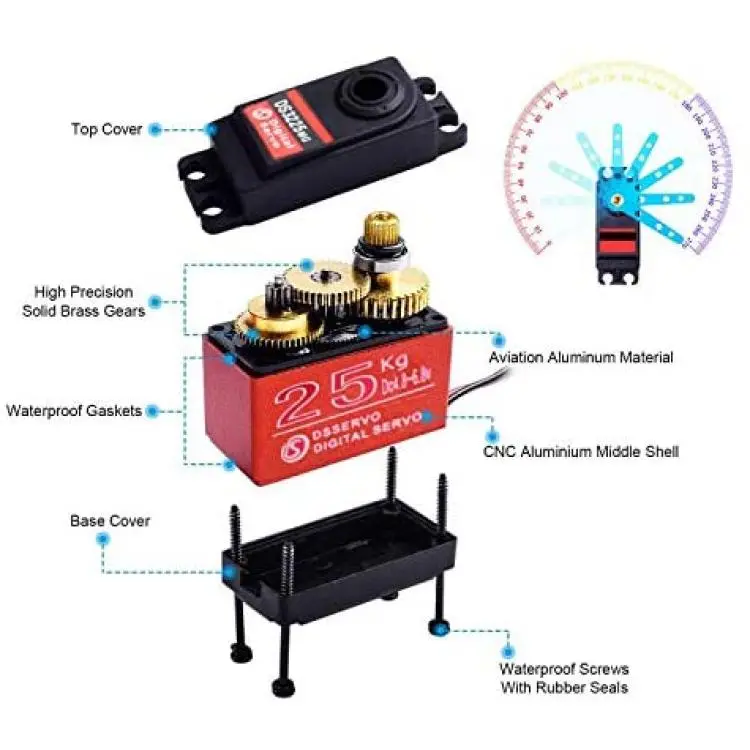

High-speed big torque digital servos. Servo Equipped with strong Aluminum gear, iron core motor, CNC aluminum middle shell.

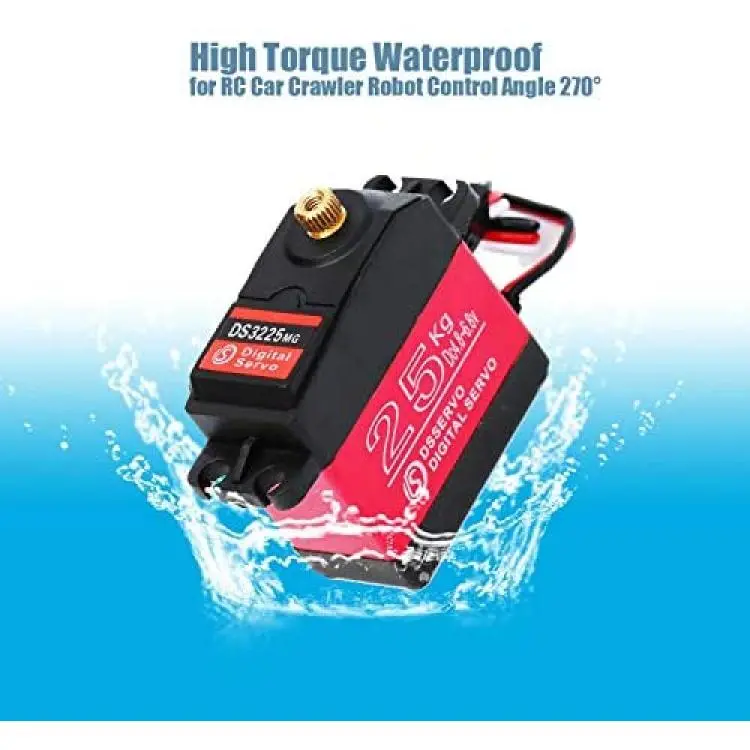

Less Noise, light weight. Stable and water-proof
Power cord is longer up to 15.75inches(40cm), and also send with a 25T adjustable metal servo arm
Operating voltage range: 4.8 - 6.8V
Operating speed ( 5.0V ): 0.15 sec/60 degree
Operating speed ( 6.8V ): 0.13 sec/60 degree
Stall torque ( 5.0V ): 21kg/cm
Stall torque ( 6.8V ): 25kg/cm
Control System: PWM(Pulse width modification)
Pulse width range: 500~2500 ?sec
Neutral position: 1500?sec
Running degree: 270° (when 500~2500 ?sec)
Dead band width: 3 ?sec
Operating frequency: 50-330Hz
Rotating direction: Counterclockwise (when 500~2500 ?sec)
Gear ratio: 275
Bearing: Double bearing
Connector wire: 17.7inches(450mm)
Motor: 3-pole(s)
Waterproof performance: IP66

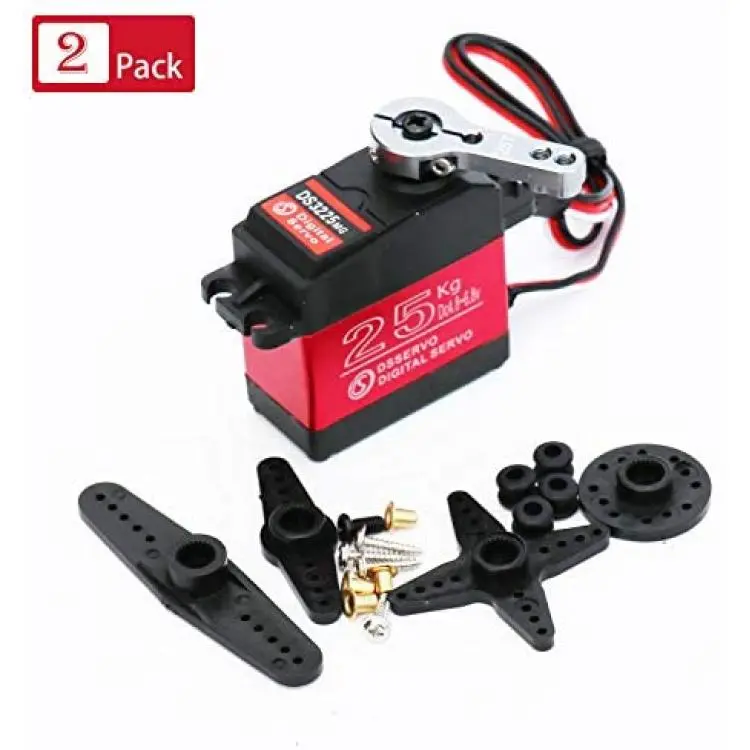

Package:
2 x DS3225MG Digital Servo
2 x 25T Adjustable metal servo arm
