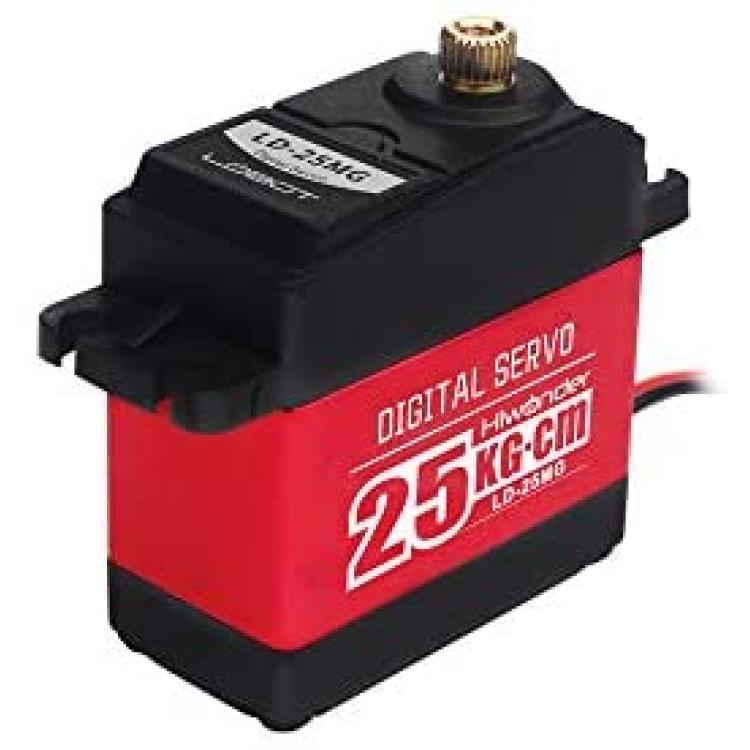

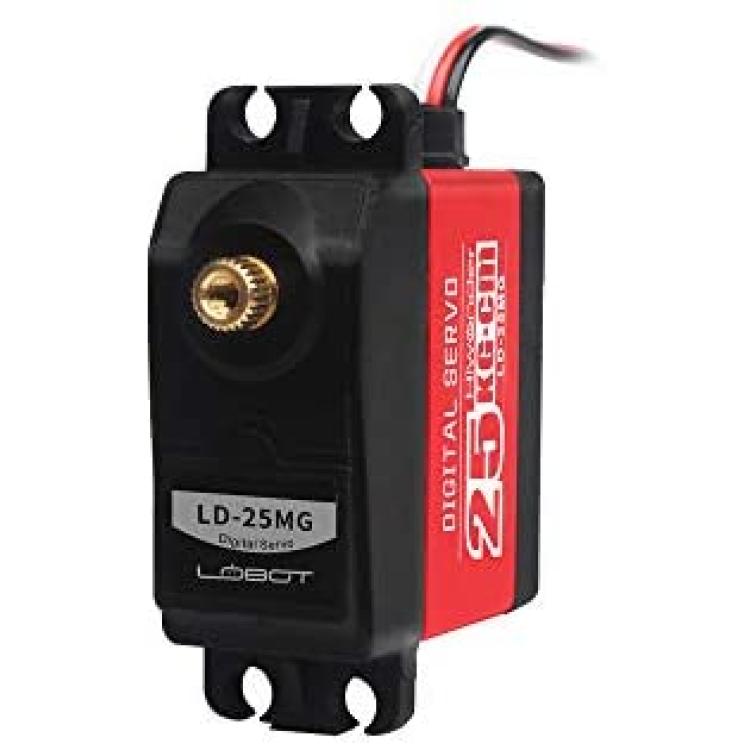

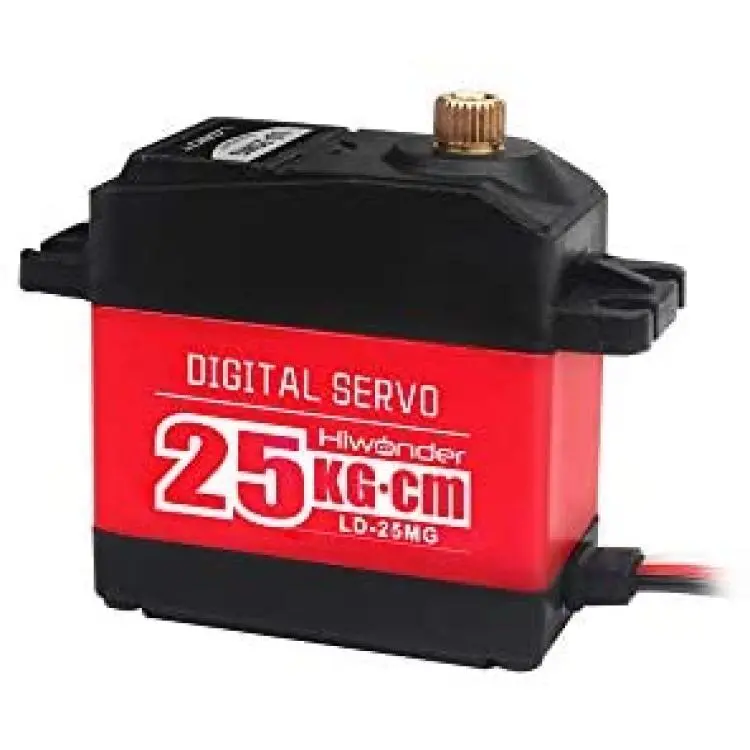

Hiwonder 25kg Standard Digital Servo with 180° Rotation High Torque, Metal Gear Aluminium Case for Robot RC Car
About this product
*25kg large torque. 25 kg·cm (347 oz·in) @ 6.6V. Dimension: 40*20*40.5mm(1.57*0.78*1.59inch)
*Full metal gear. its better for accuracy, service life has been greatly increased
*Aluminium Case. Enhance the heat dissipation, ensure that servo motor can work well
*Using high-precision potentiometer with new design. Accuracy and linearity have been greatly improved! Accurate movement can satisfy the needs of making robots.

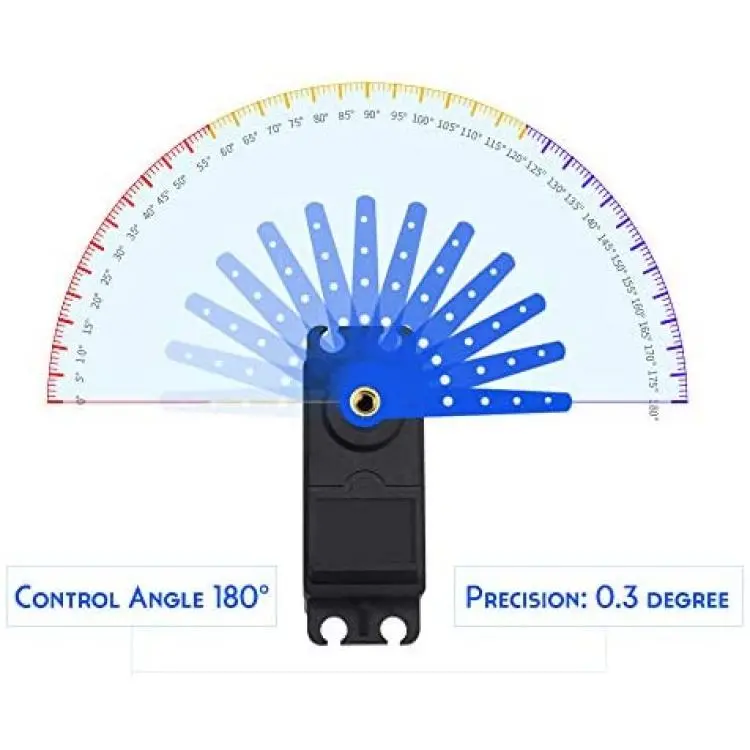

*180 degree rotation. Controllable angle range from 0 to 180 degrees, Excellent linearity, precision control. Can be rotated within 360 degrees when power off
Description
Specifications:
Weight: 65g(2.32OZ)
Dimension: 40*20*40.5mm(1.57*0.78*1.59inch)
Speed: 0.16sec/60°(7.4V)
Stall Torque:25 kg·cm (347 oz·in) @6.6V
Working Voltage: 6-7.4V
Min Working Current: 1A
No-Load Current: 100mA
# Spline: 25T(6mm in diameter)
The servo wire: 30cm(11.8inch) in length
Control Specifications:
Control Method: PWM
Pulse Width: 500~2500
Duty Ratio: 0.5ms~2.5ms
Pulse Period: 20ms
Wire Layout:
Red Wire: +
Black Wire: GND
White Wire: PWM/Signal
Please make sure that the duty cycle of the controller you are using conform to our specifications, otherwise the servo can't turn up to claimed degrees
Package Contents:
1 x Digital servo
1 x Servo horn kit(Includes metal servo horn)
Tips:
1. Please use Li-Po battery to power the servo, Do Not use dry battery, otherwise the servo will move slowly or not at all(our servo has higher torque, so it also need more powerful power to drive itself).
2. Please use short and thick power cord, Do Not use Dupont cord
3. Our servo can be controlled by Arduino, please refer to the Arduino library.
